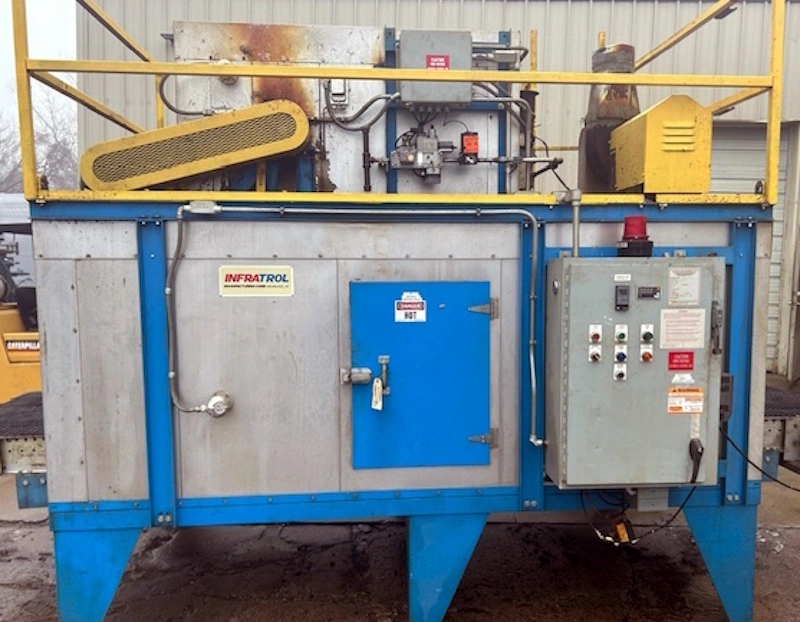

U-3858 Infratrol Mesh Belt Furnace (48”W x 5"H, 10' heat, 400ºF, gas)

Manufacturer: Infratrol Manufacturing
Type: Continuous Flat Wire Belt Furnace

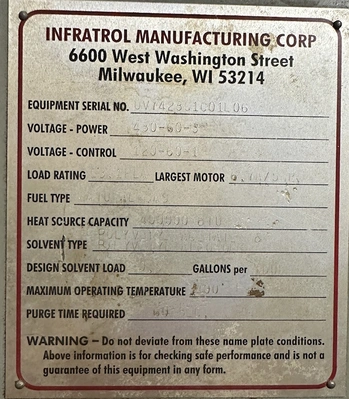

Serial Number: 0V7428S1C01L06
Heating: Natural Gas, 400,000 BTU
Working Dim’s: 48” wide x 5” clear height x 10’ of heating
Note: Clear height can be increased.
Overall Dim’s: 9’8” wide x 15’ long x 9’8” high
Power: 480 Volts / 3-Phase / 60 Hz
Load Area: 30”
Unload Area: 33”
Load Height: 36” from Floor
Max Temp: 400°F
Blower: Exhaust Blower on Charge End

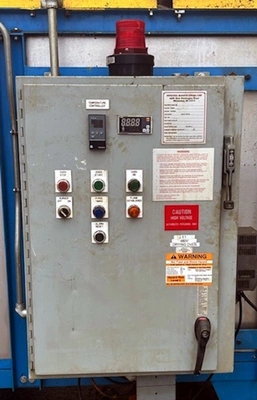

Controls:
Future Design Controls FDC8100 Temp Controller
Autronics TC400 Over-Temp Controller
Variable speed belt drive
