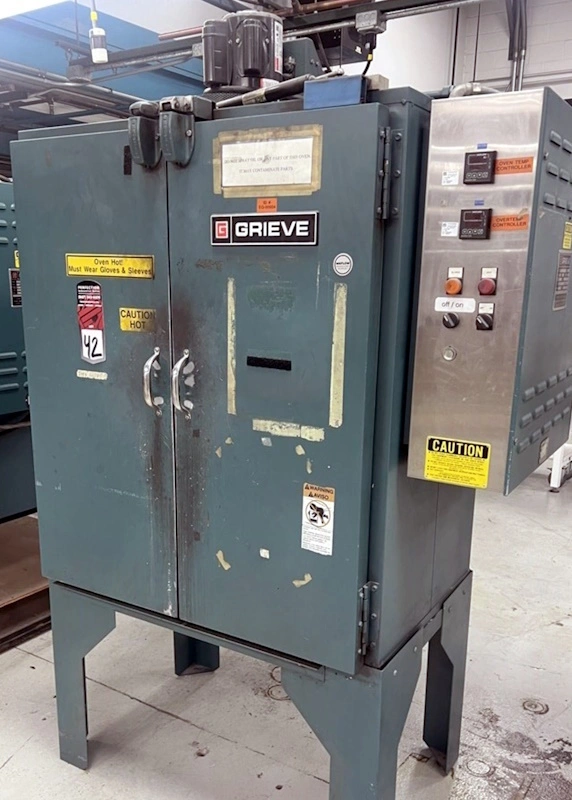

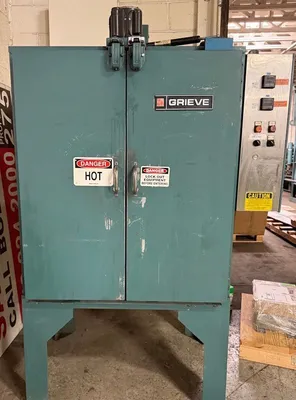

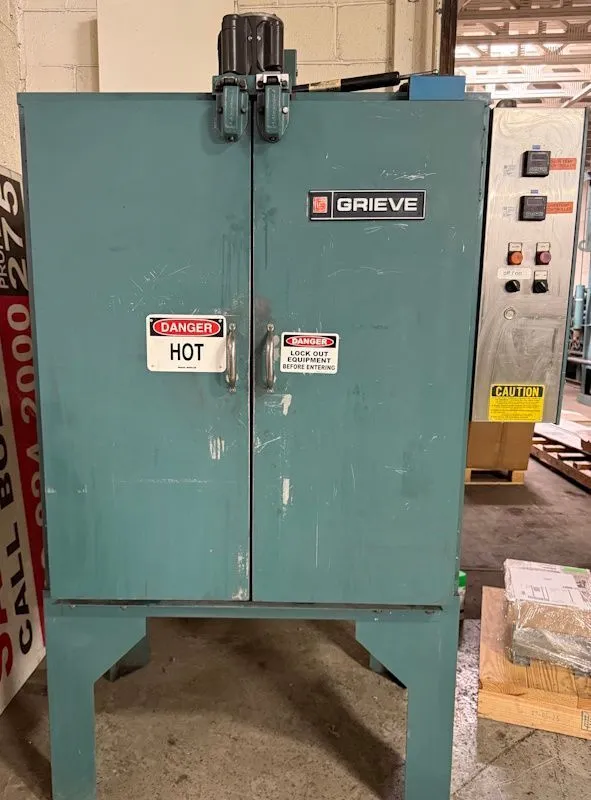

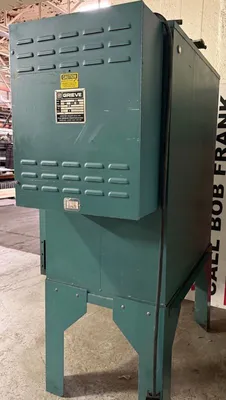

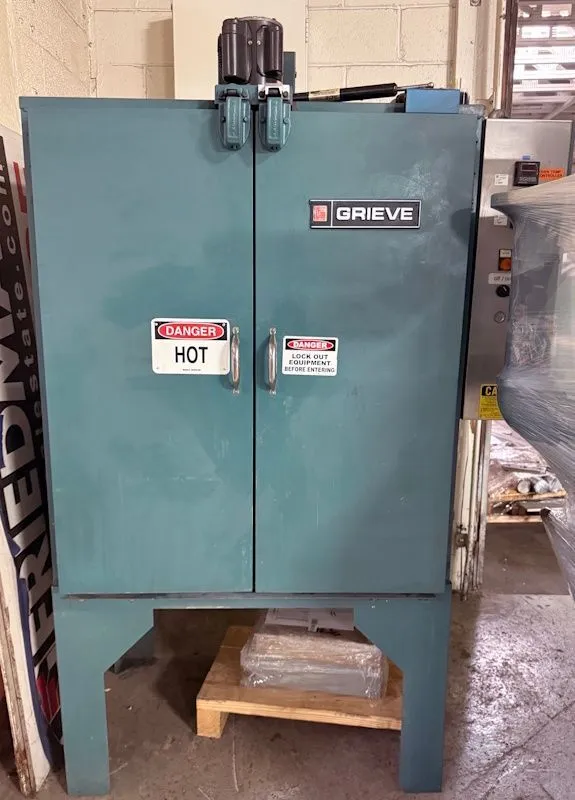

U-3845 Grieve Cabinet Oven (36"W x 21"D x 36"H, 400ºF, elect)

Manufacturer: Grieve Oven
Type: Electric Cabinet Oven

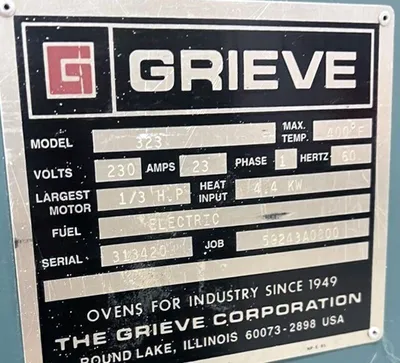

Serial No./Model: 313420 / 323
Max Temperature: 400ºF
Power: 4.4 KW
Air Flow: Forced Convection, Front to Back

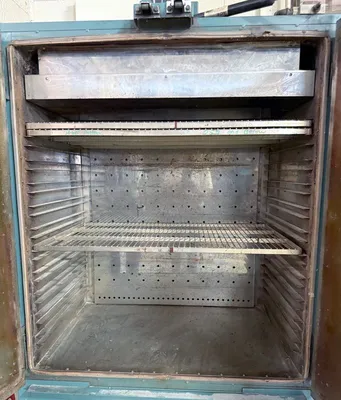

Workable Dim’s: 36” wide x 21” deep x 36” high
Rated:230 V, 3-Phase, 60 Cycle, 23 Amps
Overall Size: 40” wide x 28” long x 47” high
Ship Weight: 600 pounds

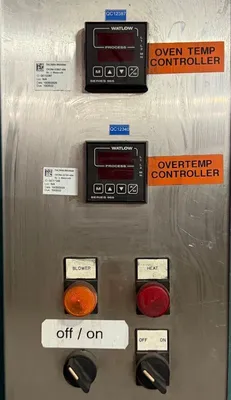

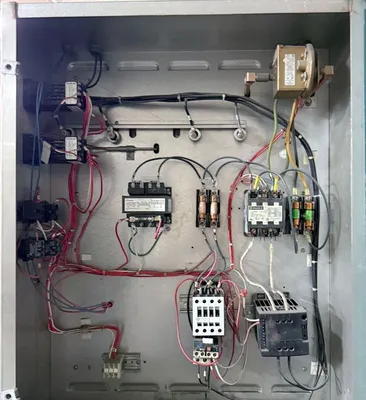

Controls:
Digital indicating temperature controller
Motor control push buttons & on-off heat switch
LED pilot lights
5 kA short circuit current rating (SCCR)

General:
Heating elements located in heat chamber to prevent radiant heating

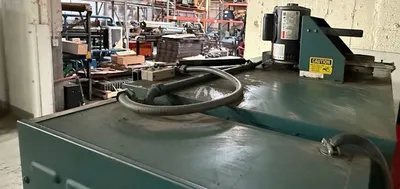

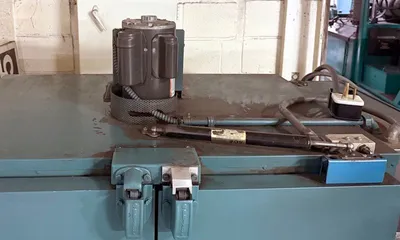

High pressure carbon steel recirculating blower
Heavy duty doors with explosion venting latches
Silicone rubber door gasket
